Fire Attack Ranger Super Duty

Fire Attack Vehicle Download Brochure (PDF)

Ranger super duty
fire attack vehicle

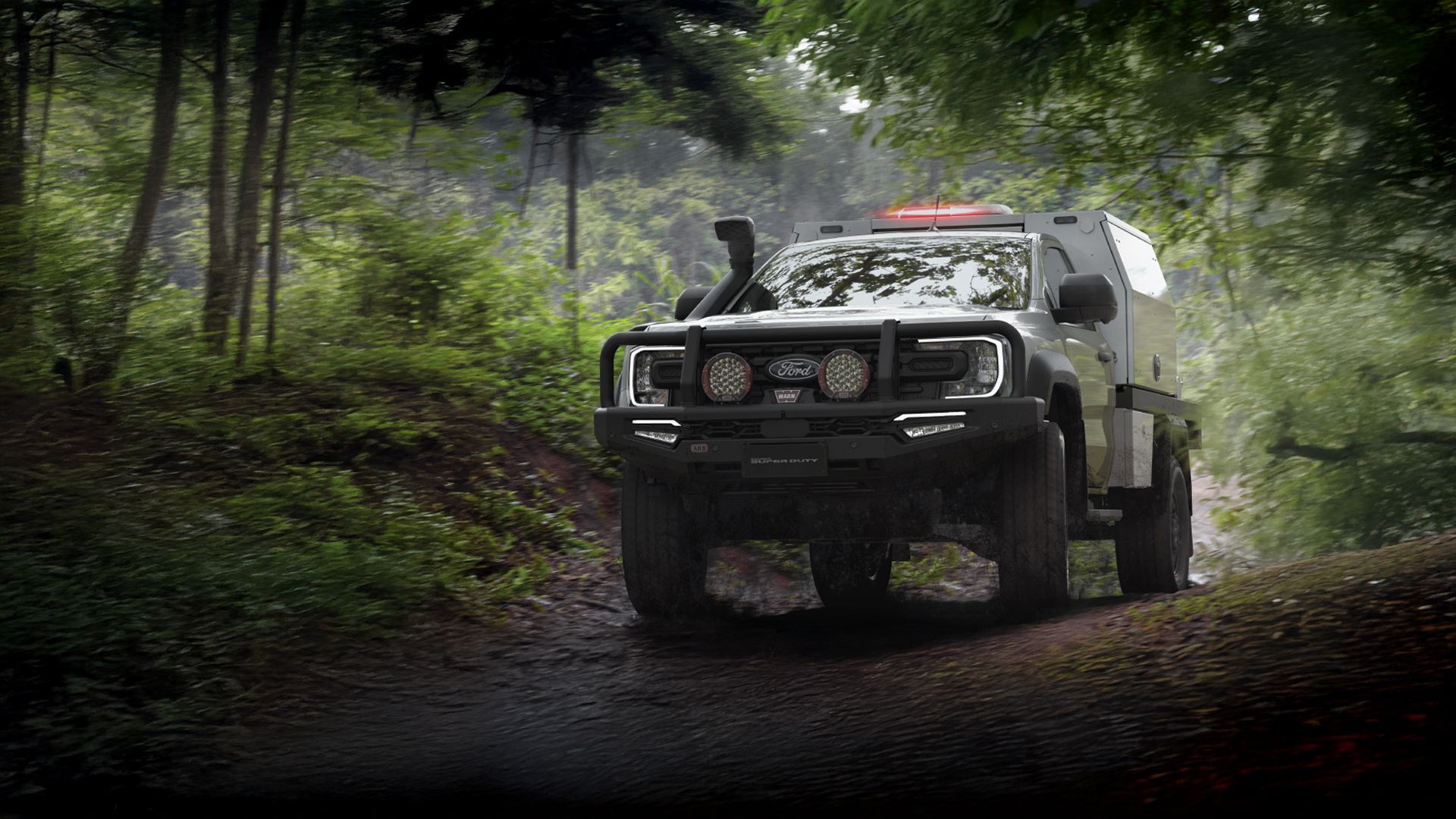

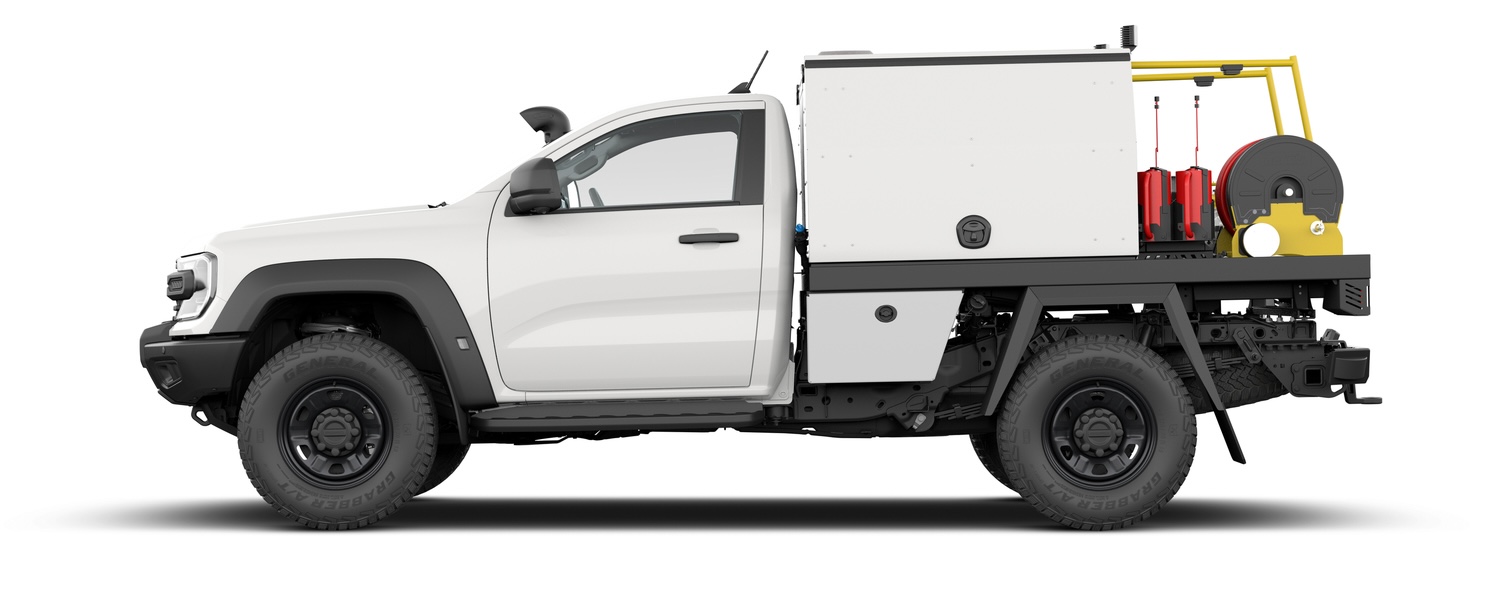

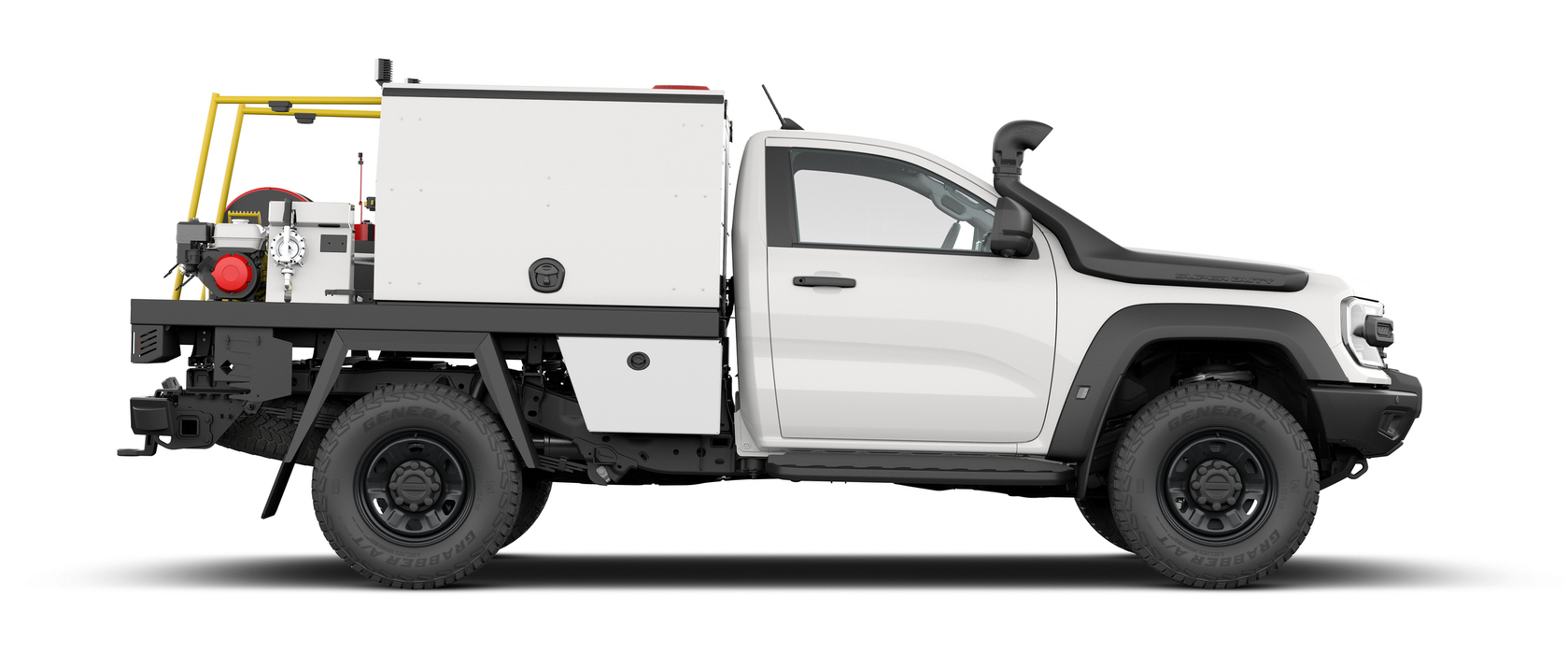

Introducing the Ranger Super Duty Fire Attack Vehicle
The ultimate firefighting vehicle. Designed to carry and tow heavy firefighting equipment, it boasts impressive
payload and towing capacity, effortlessly handling an 800L water tank. With high ground clearance for exceptional off-road
capability, this vehicle is built to conquer the toughest terrain and tackle any challenge.

Feature

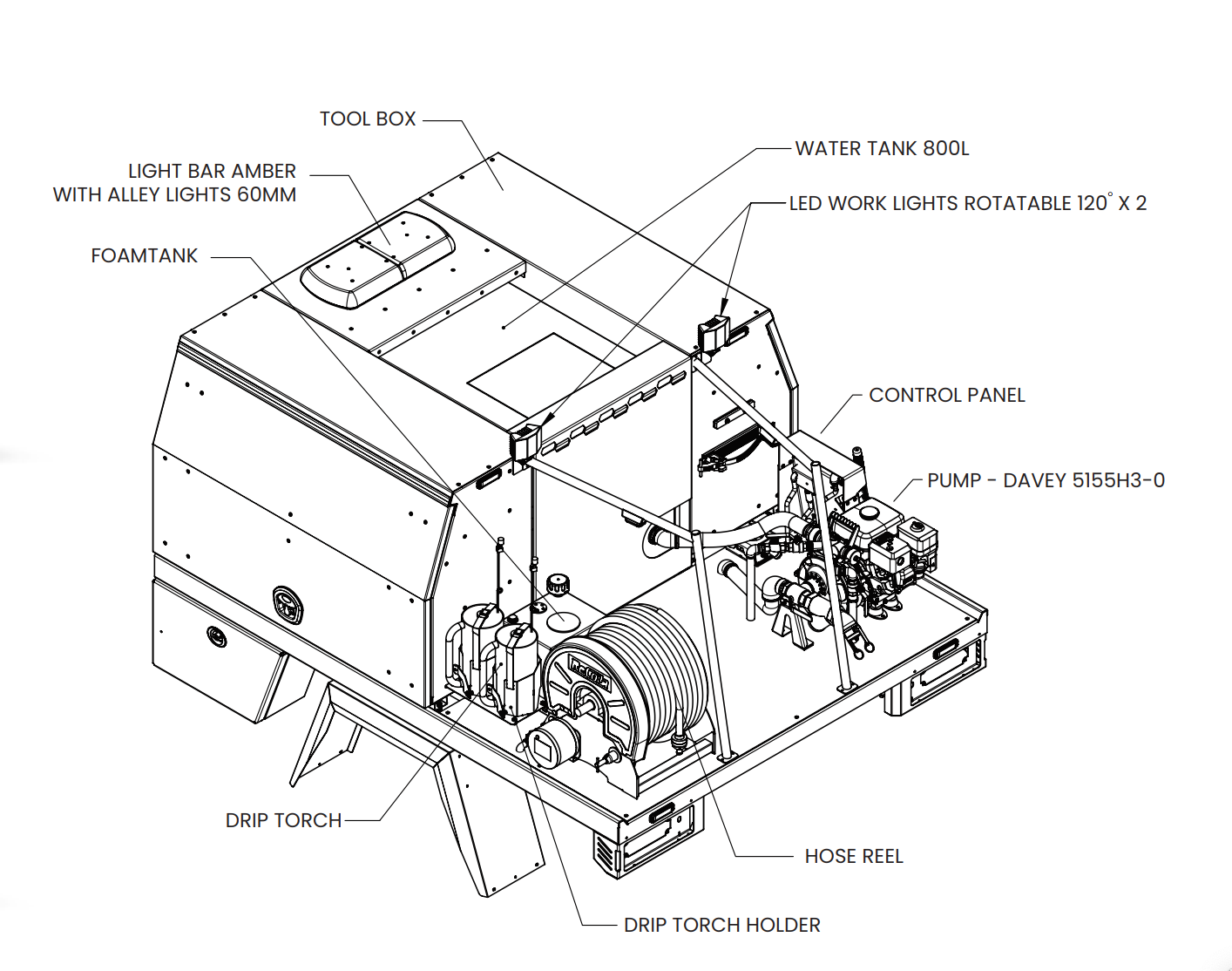

  • Lightweight Minecorp modular steel body (total body weight of 650kg – excluding water)

  • 800L water tank with COG lowering sump

  • 500kg remaining payload for passengers, cargo & trailer ball weight

  • Davey petrol driven single stage pump

  • Recoila electric rewind hose reel with 50M of hose and safety lock

  • Drip torch mount and drip torch fuel storage tank

  • Hand pump primer system

  • Twin Minecorp aluminium locker equipment storage with central locking and interior Led light

  • Dual battery system with 105Ah AGM and DCDC charging system

  • Access handrails with integrated LED deck lighting

  • LED ground lighting & overhead scene lights

  • Ecco Code 3 LED warning bar & LED direction light system

  • Proudly designed and manufactured by Minecorp in Queensland

Notes: The company reserves the right to change the vehicle specifications and features described in this publication at any time. Vehicle specifications and features may vary in different markets. Images are for illustrative purposes only and may appear different from the actual vehicle.
